Ultra-Slim Tracker

More Than Just Location

Overview

Smart Insights for Every Asset

Compact and tough. Tracks GNSS, motion, tilt, tamper & temperature. Installs easily. Smart insights, always—wherever life goes.

Small size,
big performancet

Last 20 m Position

Sorry, your ID is maybe not correct (If you did not place any ID that means auto-detect does not work.). And please make sure that your selected element is developed with Swiper.

About Ultra-Slim Tracker

Key Features

Wireless connectivity

Wireless connectivity via cellular networks (LTE-M / NB / GPRS)

Wide-Ranging GNSS Support

Compatible with different tracking systems
GPS/GLONASS/BeiDou/Galileo

Positioning

GNSS, optional WiFi/Bluetooth positioning

Trace History

Provides a complete record of device movement and location changes for auditing and security.

Geofencing

Geofencing enables precise device location and theft prevention

Last 20 m Positioning

via RFID & Buzzer

Get to Know

Wireless connectivity

Geofencing

Trace History

Powerful Battery

Operating Temperature

Sorry, your ID is maybe not correct (If you did not place any ID that means auto-detect does not work.). And please make sure that your selected element is developed with Swiper.

More Details

Technical Data

Communication Interface	MQTT-SN

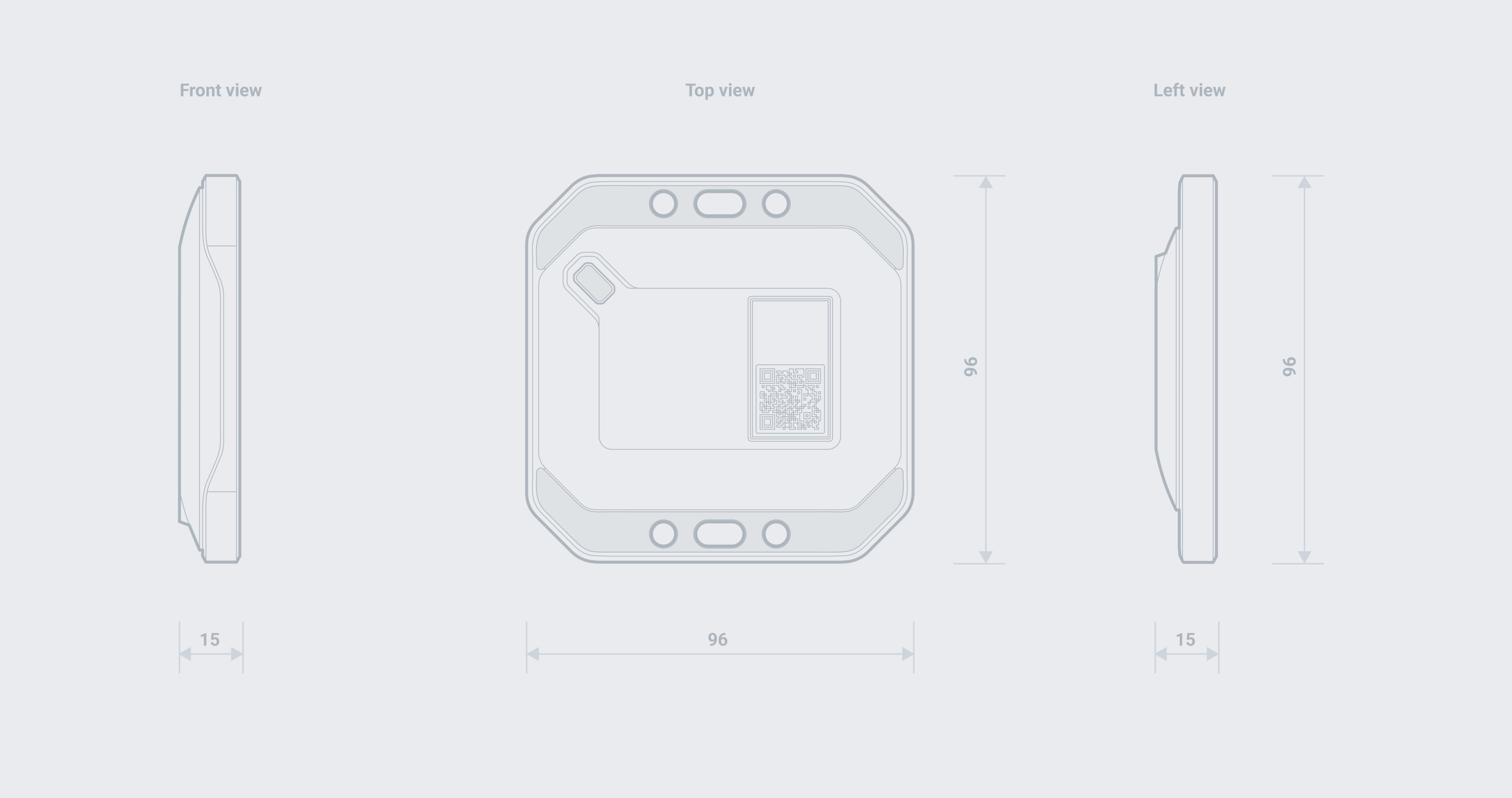

Device Size	96mm (W) x 96mm (L) x 15mm (H)
Weight	200g
IP Class	IP65
Operating Temperature	Min -20°C Max 60°C (with Chip-SIM)
Storage Temperature	Optimum 20-30°C (with Chip-SIM)
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 70% (non-condensing)
Number of SIM Slots	1x Chip-SIM
Power consumption	Quiescent current < 15uA
	IOT Transmission < 400mA
	IOT Receiving current < 100mA
	Average power consumption
	1.5mAh/Transmission
	Typical lifetime 5 years
