NB-IOT Laser Distance Sensor

Laser Accuracy Meets Smart IoT

Overview

Highly precise & dependable

NB-IoT laser distance sensor accurately detects space in containers, silos, and tanks. Real-time data supports smart scheduling, inventory control, and predictive maintenance.

Precise
measurement

Laser technology enables precise distance measurement up to 4 m

Reporting enables
smart transport

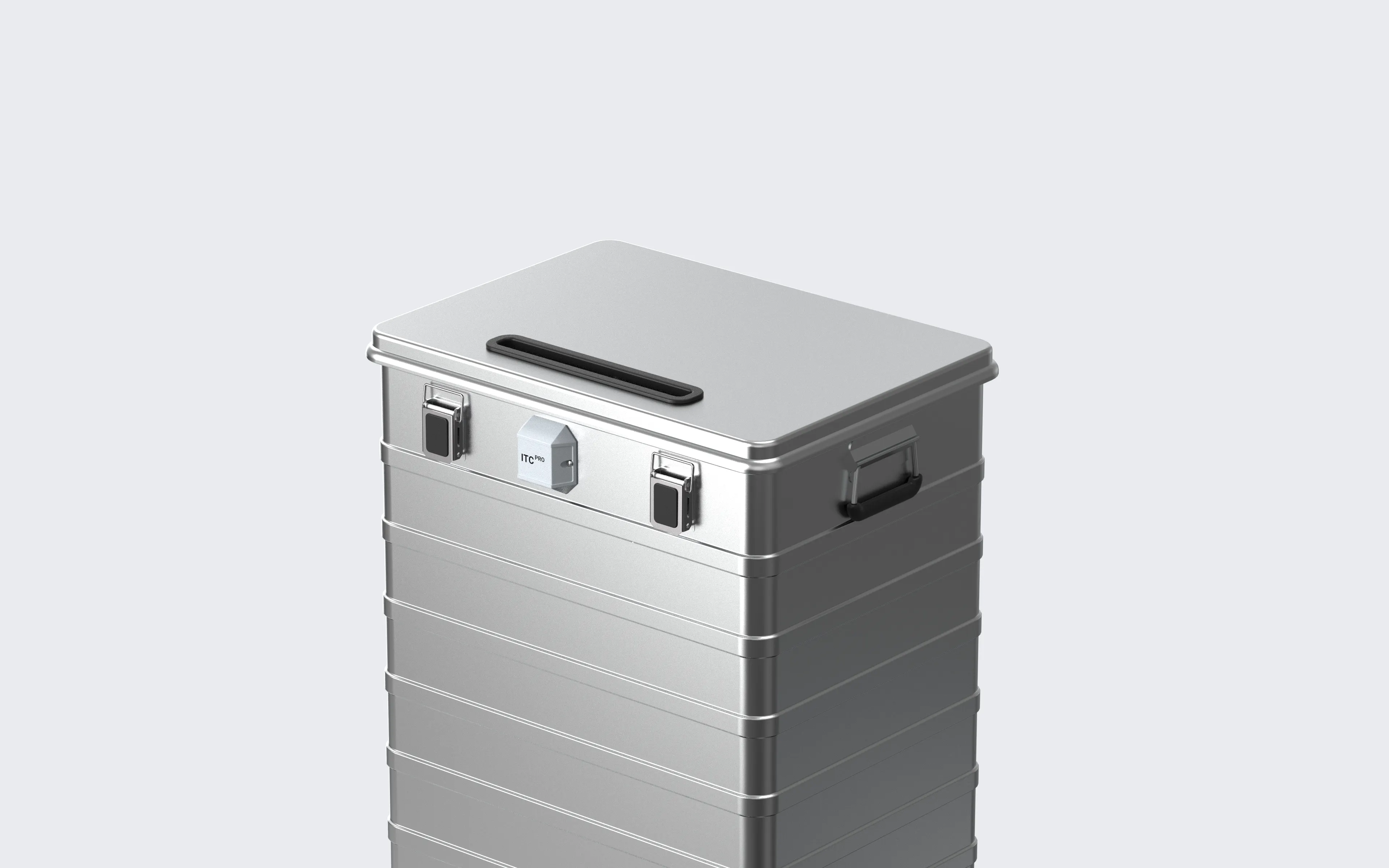

Individual containers report their readiness for collection.

Sorry, your ID is maybe not correct (If you did not place any ID that means auto-detect does not work.). And please make sure that your selected element is developed with Swiper.

Key Features

Wireless connectivity

Wireless connectivity via NB-IoT cellular networks

Precise Laser Measurement

Laser technology enables precise distance measurement up to 4 m

Motion and tipping detection

Smart sensing of motion and tilt for predictive control and efficiency.

Long Battery Life (5–8 Years)

High-capacity battery supports 5–8 years of field operation

Wide Operating Temperature

Wide operating temperature range (–20 °C to 60 °C), ideal for outdoor use

Get to Know lever meter

Easy to install

Powerful Battery

Precise Measurement

Operating Temperature

Wireless connectivity

Sorry, your ID is maybe not correct (If you did not place any ID that means auto-detect does not work.). And please make sure that your selected element is developed with Swiper.

More Details

Technical Data

Communication Interface	REST, MQTT, MQTT-SNn

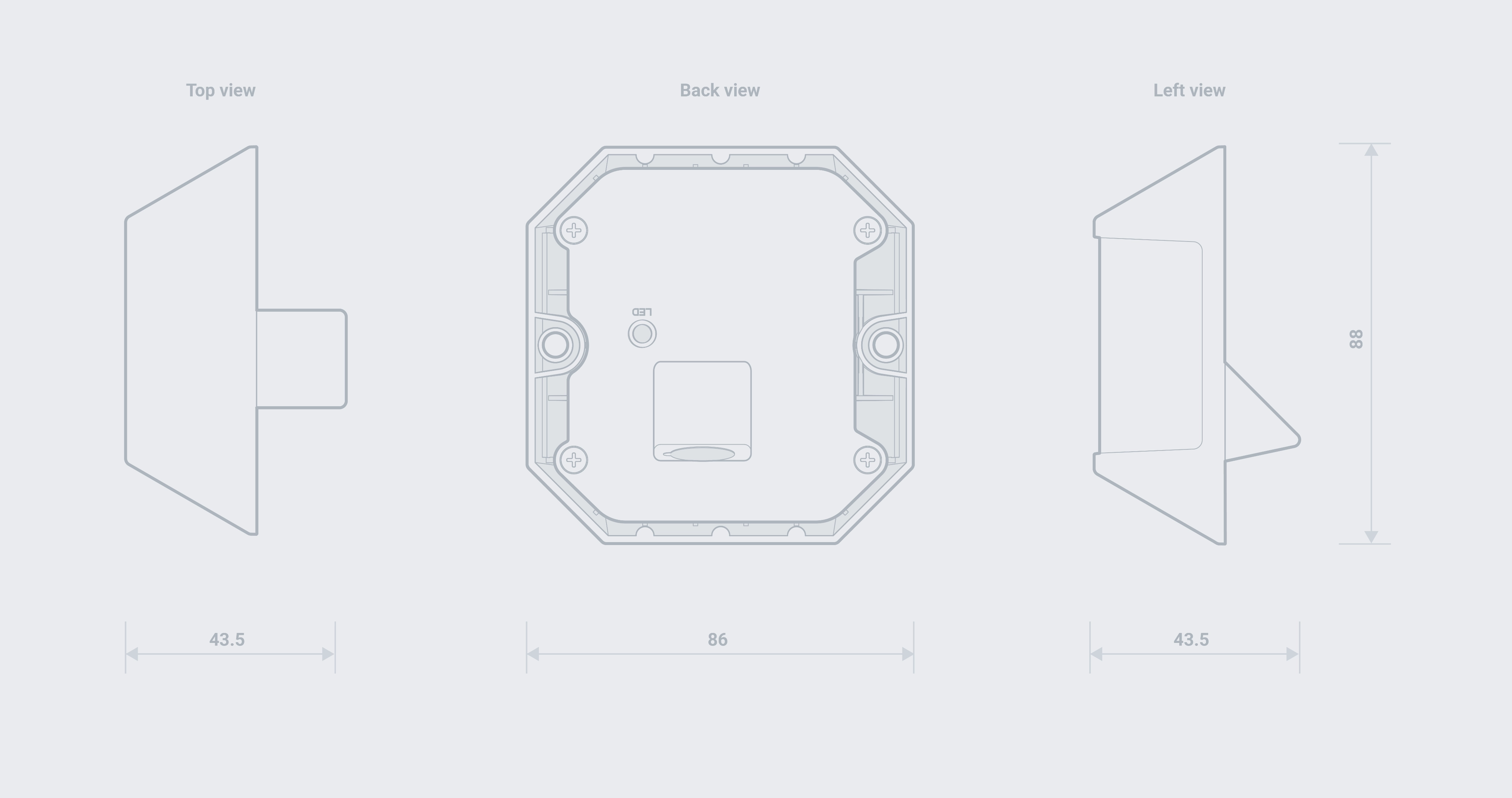

Device Size	86mm (W) x 88mm (L) x 43.5mm (H)
Weight	<200g
IP Class	IP65
Operating Temperature	Min -20°C Max 60°C (with Chip-SIM)
Storage Temperature	Optimum 20-30°C (with Chip-SIM)
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 70% (non-condensing)
Number of SIM Slots	1x Chip-SIM
Power consumption	Quiescent current < 15uA
	NB-IOT Transmission < 400mA
	NB-IOT Receiving current < 100mA
	Data acquisition current < 600mA
	Average power consumption 0.65mAh/day
	Typical battery lifetime > 5 years @ 1.5 transmissions/day and 2 FOTA updates
